Specification:
| Model | JAY-20H | JAY-40H | JAY-60H |
| Hypoxic Flow | 200LPM | 400LPM | 600LPM |
| Hypoxic Concentration | 9%-20.9% | ||
| Outlet Pressure | 6-10Psi | ||
| Oxygen Concentration | 93%(±3%) | ||
| Simulated Altitude | 0-6500m(0-21330ft) | ||
| Sound Level | ≤55dB | ≤58dB | ≤60dB |
| Power Consumption | ≤1100W | ≤2200W | ≤3300W |
| Alarms | Power failure alarm,high / low pressure alarm | ||
| Net Weight | 95kgs | 160kgs | 245kgs |
| Dimension | 600*400*1380mm | 760*540*1380mm | 760*540*1960mm |
| Optional | 1. Pulse oximeter; 2.Monitor system | ||
Application:
-

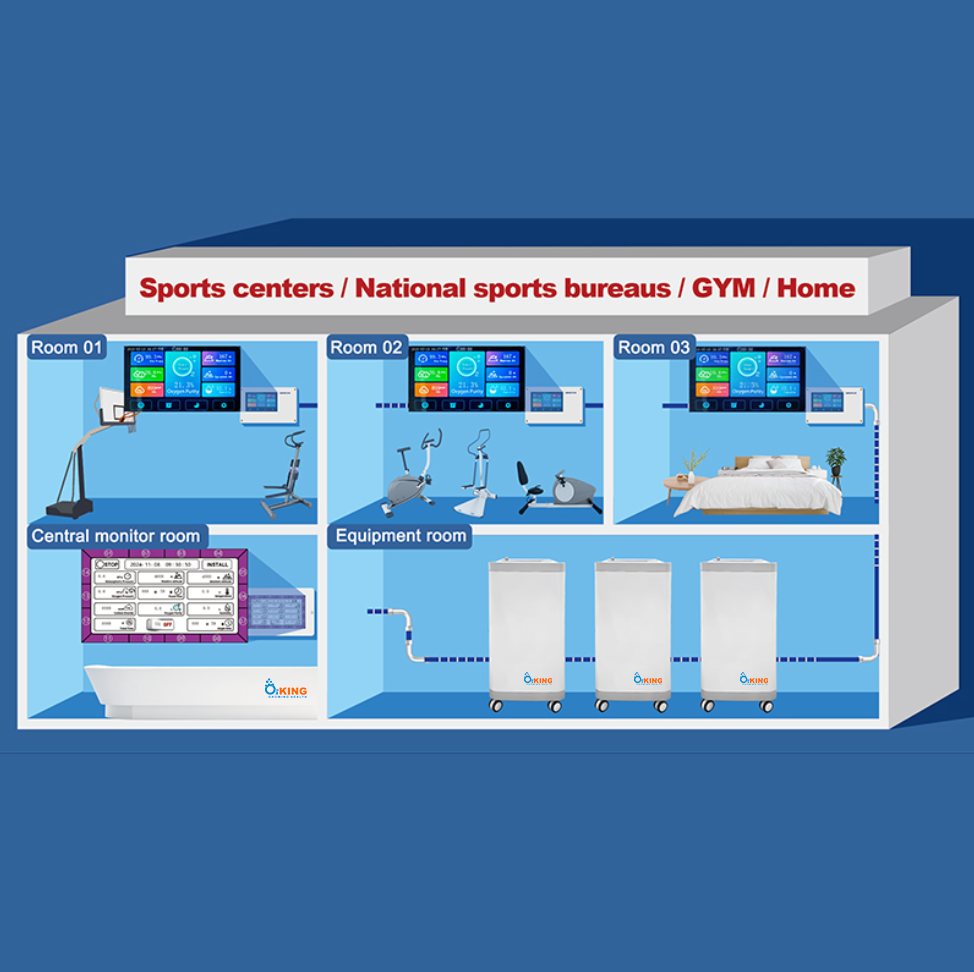

Includes a hypoxic generator, oxygen controller, and oxygen monitor
-
Widely used in sports centers, national sports bureaus, and gyms to enhance athletic performance
-
Simulates altitudes from 0 to 5,000 meters
-
Adjustable hypoxic purity ranging from 9% to 20%
-
Each room features an oxygen monitor displaying:
-
Hypoxic purity
-
Temperature
-
Humidity
-
Altitude
-
CO₂ levels
-
-
Central monitoring system collects data from all rooms to track:
-
SpO₂
-
Blood pressure
-
Pulse during altitude training
-
-
Equipped with wrist or finger-clip oximeters for real-time SpO₂ and pulse monitoring
-
Data automatically uploads to the central monitor for comprehensive athlete tracking
